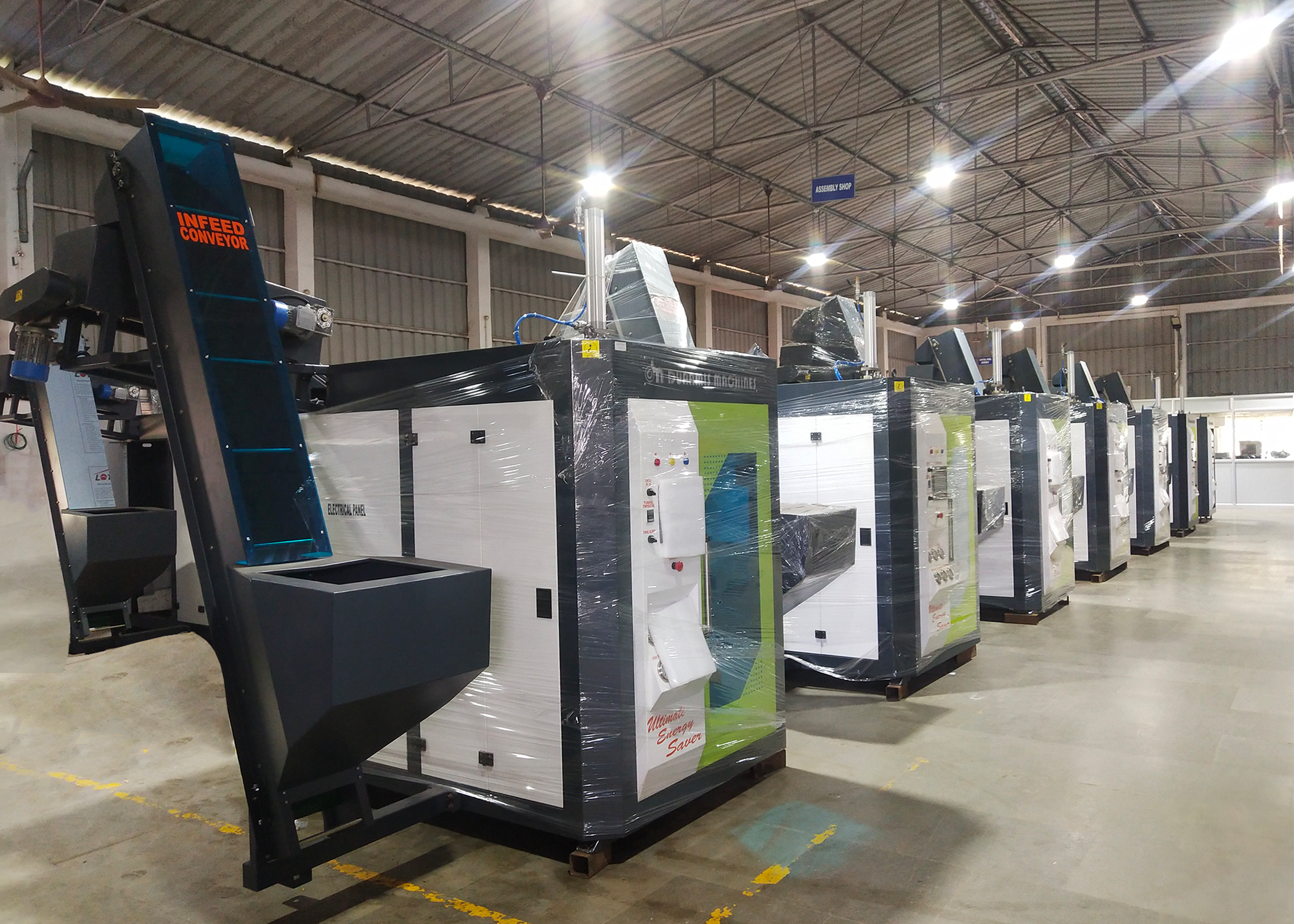

                4400BPH Fully Automatic PET Stretch Blow Moulding Machine
                4400BPH Fully Automatic PET Stretch Blow Moulding Machine
                4400BPH Fully Automatic PET Stretch Blow Moulding Machine 4400BPH Fully Automatic PET Stretch Blow Moulding Machine

                4400BPH Fully Automatic PET Stretch Blow Moulding Machine

                2095000 INR/Unit

                Product Details:

                • Product Type Plastic Processing
                • General Use Water and Food Beverages Industries
                • Material PET
                • Capacity 4 CV
                • Operating Type Automatic
                • Type Oil Bottles, Water Bottles, Carbonated Drink Bottles, Juice Bottles
                • Computerized Yes
                • Supply Ability : 1 Unit Per Week
                • Click to view more
                X

                Price And Quantity

                • 2095000 INR/Unit
                • 1 Unit

                Product Specifications

                • PET
                • Plastic Processing
                • 4
                • Yes
                • Oil Bottles, Water Bottles, Carbonated Drink Bottles, Juice Bottles
                • GREEN
                • Automatic
                • 4 CV
                • High Automatization, High Transparency, Full Automatic, Heat Resistant
                • Yes
                • Yes
                • 1 Year
                • Water and Food Beverages Industries
                • Stretch Blow Moulding

                Trade Information

                • Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
                • 1 Unit Per Week
                • 1 Months
                • All India

                Product Description

                OTHER TECHNICAL SPECIFICATION:

                Machine Model

                DM-BKAE4

                Types of Preform

                Alaska & PCO

                Bottle Outlet

                Auto Drop

                Center Distance for Cavities

                76mm

                Pre-heating System

                Near Infrared

                No of Heaters

                10 Nos

                Heater Capacity

                2000 Watts

                Size of the Mould (Width x Thickness)

                120mm x 330mm (Each)

                Blowing Pressure

                20Bar

                Working Pressure

                6Bar

                Machine Connected Power

                9KW, 3 Phase

                Machine Power Consumption

                6.5KWH (Units)

                Opening Stroke

                90 degree (Book Type)

                Required Compressor Capacity (High Pressure)

                25HP/25Bar/72CFM

                Required Air Dryer Capacity

                100CFM/40Bar

                Required Water Chiller Capacity

                3.5Ton@10 degree C

                MACHINE FEATURES:

                Our machine has simple innovative design and ultimate energy saving. It is engineered for efficiency and maximum production speed.

                • Very Low Power Infrared Conveyorised Preheating System for Power Saving.
                • Blowing Toggle System for Easy and Lesser Mould Changing Time.
                •  Incremental Heater Settings by 1% to 199% for Accurate Pre-form Heat Setting.
                • Air & Water Lines are Push & Pull System for Easy Maintenance.
                • Long Life PU Seal Cylinders and Higher Accuracy Valves used for Low Pressure Control System.
                • IP67 Grade P & F Sensors used for Higher Accuracy & Speed.
                • 32 Bit PLC Based System with 7” Multi colour HMI Unit used for Easy Man Machine Interfacing and Higher Machine Performance.
                • Multiple Products Like Mineral Water Bottles, Carbonated Soft Drinks Bottles, Hot Fill Juice Bottles at Low Investment.
                • Machine Can Store 20 Mould Recipe Parameters so it helps to reduce Mould Changing Time.
                • Very High Productivity with Very Low Power Consumption.
                • Easy operation & Easy maintenance.
                • Production Display with Man Machine Interfacing Facility. The multicolor Touch screen Display is Used to Graphically view all the parameters.
                • Compact Structure and low maintenance cost.
                OUR VALUABLE PARTNERS:
                • Electrical System - Schneider Electric -  France
                • Controllers - Inovance - Taiwan
                • Pneumatic Items – Festo - Germany
                • Motors & Gear Boxes - Transtech - Taiwan
                • Sensors - P & F - Germany
                • SSRs - Carllo Gavazzi - Italy
                • Bearings - NTN - Japan
                • Cables - Lapp Cables - Germany

                Overall this machine is designed for safe, hygienic, high quality PET bottles with Cost effective production at very high speed
