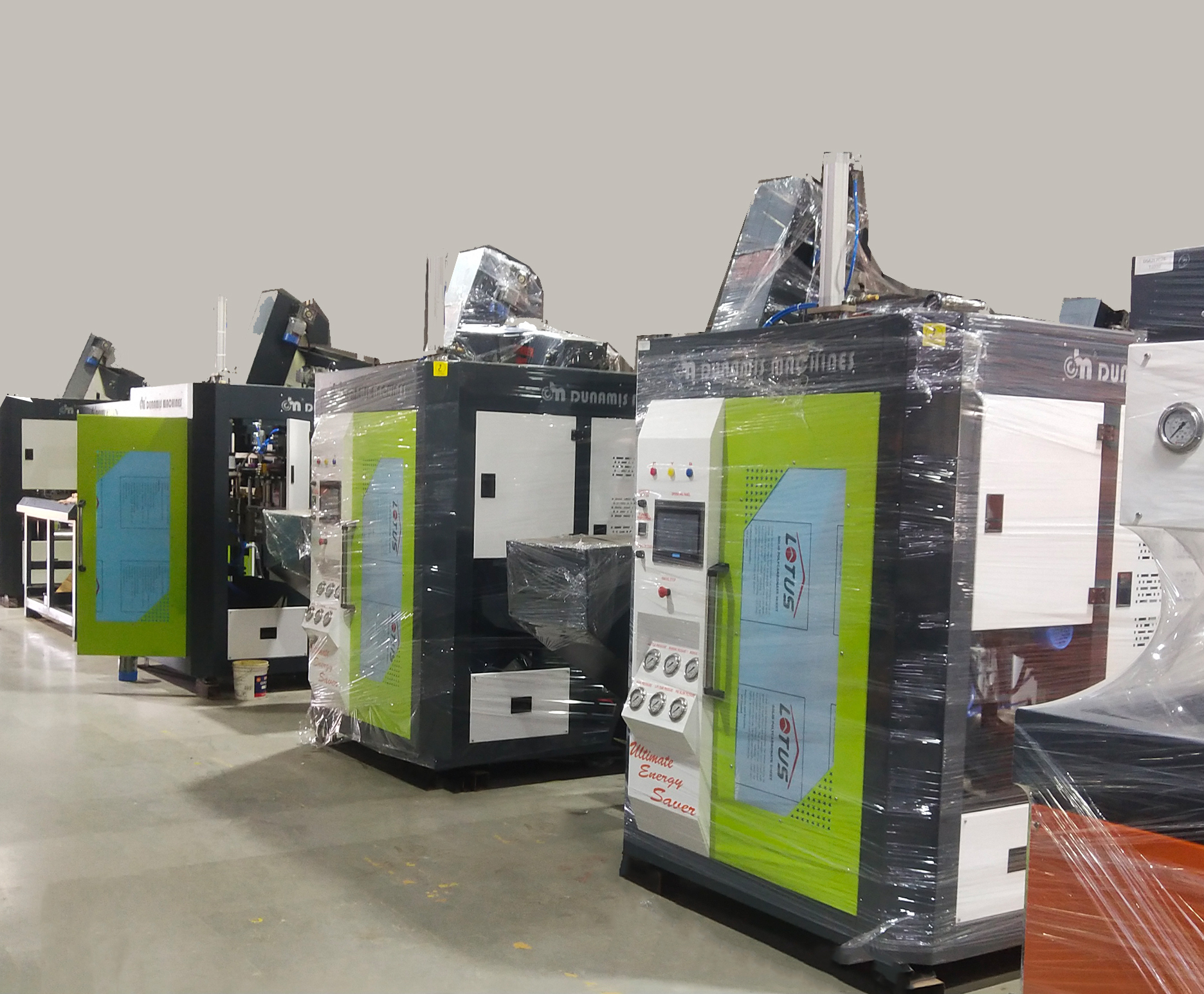

2400BPH Fully Automatic PET Blow Moulding Machine
Product Details:
- Type Juice Bottles, Carbonated Drink Bottles, Water Bottles, Oil Bottles, Beverage Bottles
- Computerized Yes
- Infrared Heater Yes
- Supply Ability : 30 , , Unit Per Month
- Click to view more
Price And Quantity
- 1 , , Unit
- 1395000 INR/Unit
Product Specifications
- Juice Bottles, Carbonated Drink Bottles, Water Bottles, Oil Bottles, Beverage Bottles
- Yes
- Yes
Trade Information
- Cash Advance (CA), Cash in Advance (CID), Cheque
- 30 , , Unit Per Month
- 1 Week
Product Description
OTHER TECHNICAL SPECIFICATION:
| Machine Model | DM-BKAE2 |
| Types of Preform | Alaska & PCO |
| Bottle Outlet | Auto Drop |
| Center Distance for Cavities | 136mm |
| Pre-heating System | Near Infrared |
| No of Heaters | 8 Nos |
| Heater Capacity | 2000 Watts |
| Size of the Mould (Thickness x width) | 120mm x 125mm (Each) |
| Blowing Pressure | 20Bar |
| Working Pressure | 6Bar |
| Machine Connected Power | 7KW, 3 Phase |
| Machine Power Consumption | 5KWH (Units) |
| Opening Stroke | 90 degree (Book Type) |
| Required Compressor Capacity (High Pressure) | 20HP/25Bar/54CFM |
| Required Air Dryer Capacity | 60CFM/40Bar |
| Required Water Chiller Capacity | 2.5Ton@10 degree C |
MACHINE FEATURES:
Our machine hassimple innovative designandultimate energy saving.It is engineered forefficiency and maximum productionspeed.
- Very Low Power Infrared Conveyorised Preheating System for Power Saving.
- Blowing Toggle System for Easy and Lesser Mould Changing Time.
- Incremental Heater Settings by 1% to 199% for Accurate Pre-form Heat Setting.
- Air & Water Lines are Push & Pull System for Easy Maintenance.
- Long Life PU Seal Cylinders and Higher Accuracy Valves used for Low Pressure Control System.
- IP67 Grade P & F Sensors used for Higher Accuracy & Speed.
- 32 Bit PLC Based System with 7 Multi colour HMI Unit used for Easy Man Machine Interfacing and Higher Machine Performance.
- Multiple Products Like Mineral Water Bottles, Carbonated Soft Drinks Bottles, Hot Fill Juice Bottles at Low Investment.
- Machine Can Store 20 Mould Recipe Parameters so it helps to reduce Mould Changing Time.
- Very High Productivity with Very Low Power Consumption.
- Easy operation & Easy maintenance.
- Production Display with Man Machine Interfacing Facility. The multicolor Touch screen Display is Used to Graphically view all the parameters.
- Compact Structure and low maintenance cost.
- Electrical System - Schneider Electric - France
- Controllers - Inovance - Taiwan
- Pneumatic Items Festo - Germany
- Motors & Gear Boxes - Transtech - Taiwan
- Sensors - P & F - Germany
- SSRs - Carllo Gavazzi - Italy
- Bearings - NTN - Japan
- Cables - Lapp Cables - Germany
Overall this machine is designed for safe, hygienic, high quality PET bottles with Cost effective production at very high speed
